5 Ethernet Switch Specifications That Industrial Engineers Overlook Until Something Goes Wrong

Ethernet switches in industrial automation applications fail at higher rates than their IT counterparts in equivalent roles for one primary reason: they are deployed in environments with conditions that their specifications do not match. According to Frost and Sullivan Industrial Network Infrastructure Reliability Assessment 2023 46 percent of unplanned Ethernet switch replacements in industrial applications involve switches deployed outside their rated operating specification, most commonly temperature. The specification oversight is identifiable from the product's data sheet and the deployment location's environmental data, which are rarely compared systematically during the selection process.

1.    Extended operating temperature range: The operating temperature rating of an Ethernet switch must accommodate both the ambient temperature of the deployment location and the thermal contribution of the enclosed panel or cabinet. Closed industrial control panels with multiple heat-generating components regularly reach internal temperatures 15 to 20 degrees Celsius above ambient. A switch rated for 0 to 60 degrees Celsius deployed in a panel in a facility with 40-degree ambient summer temperatures may operate at 55 to 60 degrees Celsius, near the specification limit. Degraded reliability above 80 percent of rated temperature is a documented characteristic of electronic components generally, making thermal margin in Ethernet switch selection directly relevant to reliability.

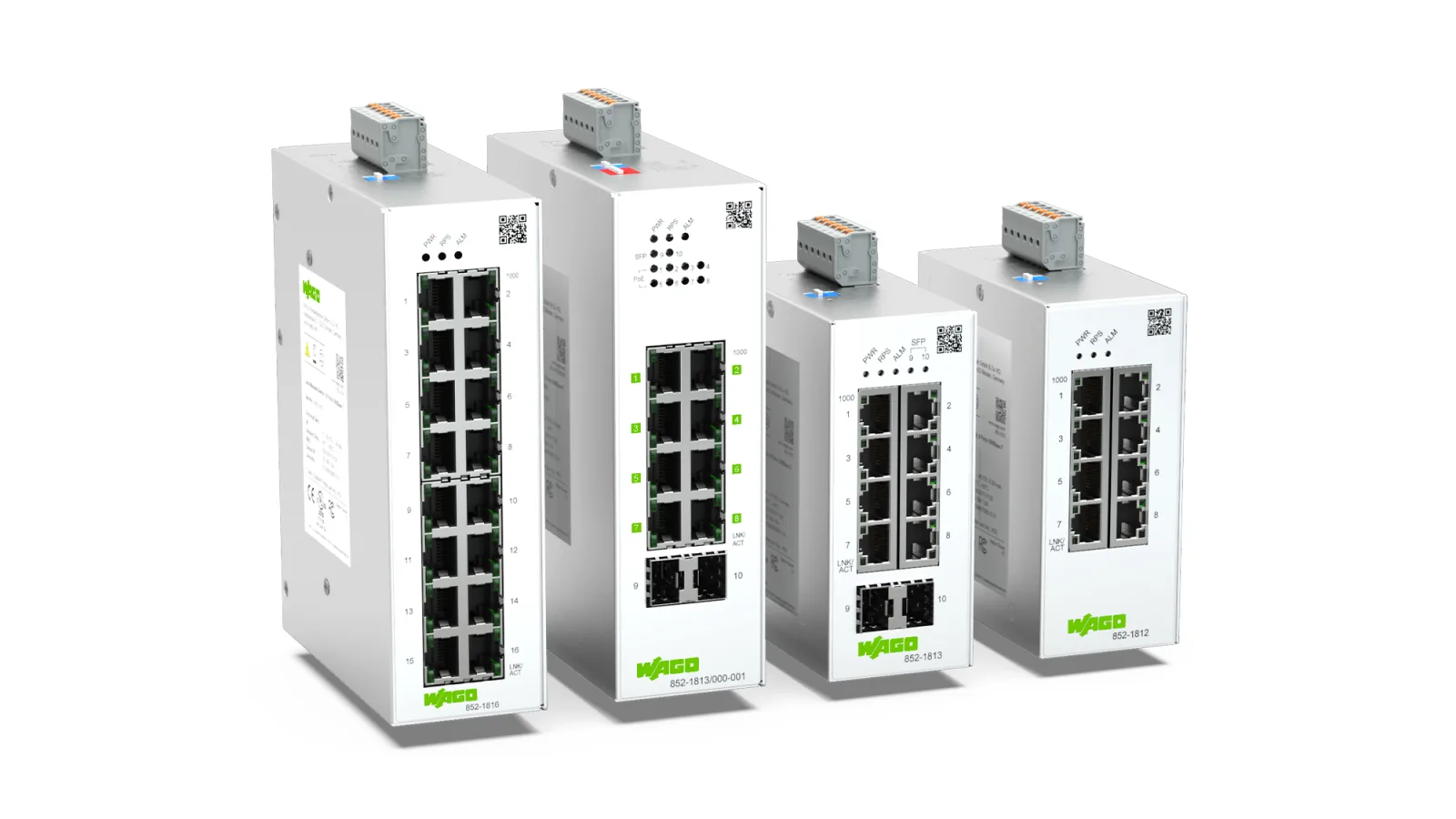

2. DIN Rail mount and 24VDC power input: Ethernet switches intended for integration in industrial control panels require DIN Rail mounting and 24VDC power input to integrate with the panel's power distribution architecture without additional adapters or power conversion. Switches with rack mount form factors and AC power input require additional panel space and power conversion infrastructure that increases both the installation cost and the number of potential failure points.

3. Ring redundancy protocol support: Industrial automation networks often use Ethernet ring topologies with redundancy protocols including PROFINET MRP, Hirschmann HiPER-Ring, or IEC 62439-2 (MRP) to provide sub-millisecond communication restoration after a single cable failure. According to ARC Advisory Group Industrial Ethernet Market Study 2023 67 percent of manufacturing facilities with continuous process operations specify ring redundancy in their Ethernet switch infrastructure to meet the communication continuity requirements of their control applications. An Ethernet switch that does not support the ring redundancy protocol used in the network cannot participate in the redundancy topology.

4. Industrial electromagnetic compatibility: Ethernet switches deployed in industrial environments with variable frequency drives, large motors, and high-current switching equipment are exposed to electromagnetic interference that can cause communication errors, reset events, and component damage in switches without adequate EMC protection. Industrial Ethernet switch specifications include conducted and radiated emission limits and immunity levels defined by EN 61000 standards that are specifically relevant to the industrial environment. Switches without these ratings may perform acceptably in initial commissioning and fail intermittently under production conditions as the electromagnetic environment changes with the addition of new equipment.

5. Managed versus unmanaged configuration: Managed Ethernet switches provide traffic prioritization, VLAN segmentation, port mirroring, and diagnostic capabilities that unmanaged switches do not. For industrial automation networks carrying both time-critical control traffic and non-critical data traffic, traffic prioritization through QoS configuration prevents data traffic from competing with control traffic for bandwidth during periods of high network utilization. Unmanaged switches do not support this configuration and are appropriate only for simple network segments where all traffic has equivalent priority requirements.

The Takeaway

The five specifications above are the ones that determine Ethernet switch performance in industrial applications and that are most frequently overlooked in selection processes that focus primarily on port count and communication speed. Adding environmental suitability and industrial-specific feature evaluation to the selection process adds minimal time and significantly reduces the risk of deploying switches that will require replacement before their expected end of life.
