Top 5 Features You Didn't Know About Cisco Switch

Cisco Switch has long been the backbone of enterprise networks, renowned for their reliability, performance, and advanced features.

Jul 21, 2023 - 10:35
 0  15
Top 5 Features You Didn't Know About Cisco Switch

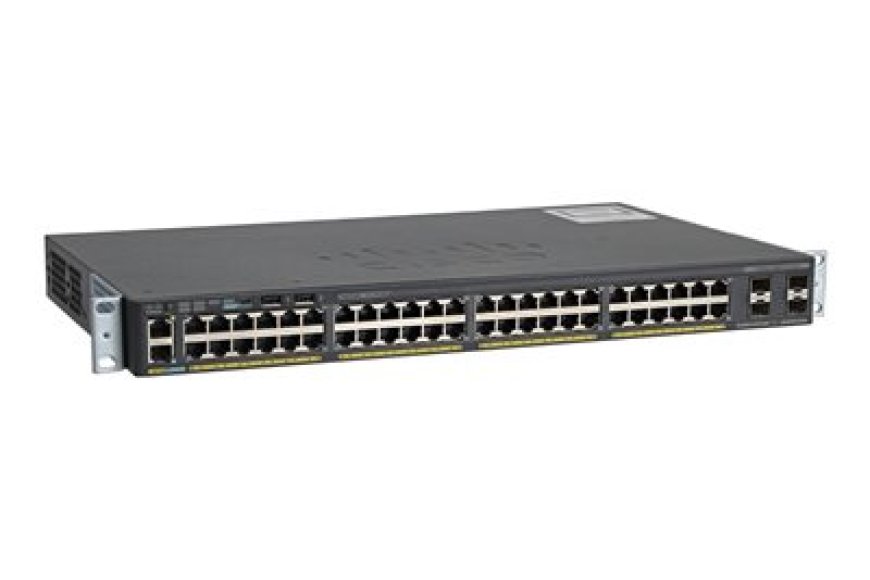

Cisco switch

Introduction:

Cisco Switch has long been the backbone of enterprise networks, renowned for their reliability, performance, and advanced features. While many network administrators are familiar with the essential functionalities of Cisco switches, there are several lesser-known features that often go unnoticed. In this article, we will embark on a journey to explore the hidden gems of Cisco switches – five remarkable features that might have escaped your attention.

Top 5 Features You Didn't Know About Cisco Switch

Smart Install Technology:

Smart Install is a Cisco proprietary feature that simplifies the deployment and configuration of new switches in a network. It allows network administrators to automatically provision newly connected switches, reducing the manual effort required for initial setup. By using Smart Install, a switch can be remotely configured with a pre-defined configuration file and assigned to specific roles within the network, streamlining the deployment process and reducing the chances of human error. However, it's essential to be cautious with this feature as it could potentially be exploited by unauthorized users, so proper security measures should be in place to prevent any misuse.

Embedded Packet Capture:

This feature is incredibly valuable for network troubleshooting and monitoring tasks. With Embedded Packet Capture, network administrators can capture network traffic directly on the

Cisco switch itself, without the need for an external packet capture device like a network analyzer. Administrators can set up filters to capture specific traffic flows, allowing them to analyze the captured packets in real time or save them for later examination. This capability is particularly useful when dealing with intermittent issues or when a network analyzer is not readily available.

Flexible NetFlow:

NetFlow is a popular traffic monitoring technology that provides visibility into network traffic flows.

Cisco switch supports Flexible NetFlow, an advanced version that offers enhanced flexibility and customization options. Traditional NetFlow captures basic flow data like source and destination IP addresses, ports, and protocols. In contrast, Flexible NetFlow allows for the inclusion of additional fields, enabling administrators to gather more detailed information about the traffic passing through the network. By analyzing this data, network administrators can gain insights into application usage, identify potential security threats, and optimize network performance.

Power over Ethernet (PoE) Customization:

PoE is a technology that allows network devices, such as IP phones, wireless access points, and security cameras, to receive power and data over the same Ethernet cable.

Cisco switch often provide advanced PoE capabilities, allowing administrators to customize the amount of power allocated to individual PoE ports. With this feature, administrators can precisely control the power delivered to connected devices based on their power requirements, ensuring efficient power usage and preventing overloading of the switch's power supply.

Energy Efficient Ethernet (EEE):

EEE is a standard defined by the IEEE (Institute of Electrical and Electronics Engineers) designed to reduce power consumption in Ethernet networks.

Cisco switch supporting EEE can dynamically adjust power usage based on the traffic load. During periods of low network activity, the switch can reduce its power consumption by entering a low-power state while maintaining link connectivity. As network activity increases, the switch automatically resumes normal operation. This feature helps organizations achieve energy efficiency, reduce operational costs, and promote environmentally friendly practices.



Keep in mind that Cisco continually enhances its switches' features and capabilities, so it's essential to refer to the latest documentation and firmware releases from Cisco for the most up-to-date information.

A Comparison of Cisco Switching Protocols: STP, RSTP, and MSTP

Cisco offers multiple switching protocols to manage network topology and ensure reliable and efficient data transmission. Let's compare three popular Cisco switching protocols: Spanning Tree Protocol (STP), Rapid Spanning Tree Protocol (RSTP), and Multiple Spanning Tree Protocol (MSTP).



Spanning Tree Protocol (STP):

STP is one of the earliest and most fundamental switching protocols used to prevent network loops in Ethernet networks. It works by creating a loop-free logical topology while blocking redundant links. STP operates based on the IEEE 802.1D standard and has a relatively slow convergence time, which means it takes some time to reconfigure the network when a link or switch failure occurs. STP uses Bridge Protocol Data Units (BPDU) to exchange information between switches and elect a root bridge, which serves as the reference point for path selection.

Pros:

  • Simplicity: STP is straightforward and easy to implement, making it suitable for small networks or where simplicity is preferred.

  • Widely Supported: STP is supported by a wide range of Cisco switch and many other network devices.

Cons:

  • Slow Convergence: STP's convergence time can lead to temporary network disruptions when topology changes occur.

  • Limited Link Utilization: STP may block redundant links, reducing the overall network throughput.

Rapid Spanning Tree Protocol (RSTP):

RSTP, defined in IEEE 802.1w, is an improvement over STP, offering faster convergence and greater network stability. RSTP retains the same basic principles as STP but introduces several enhancements to speed up convergence when a link or switch failure happens. RSTP achieves this by eliminating the need for the traditional blocking and listening states, and by using the Alternate and Backup port roles.

Pros:

  • Faster Convergence: RSTP converges much quicker than STP, reducing network downtime and improving network performance.

  • Backward Compatibility: RSTP is backward compatible with STP, allowing gradual migration from STP to RSTP without causing network disruptions.

Cons:

  • More Complex: RSTP introduces some additional complexity compared to STP.

Multiple Spanning Tree Protocol (MSTP):

MSTP, defined in IEEE 802.1s, enhances the STP and RSTP concepts by allowing multiple VLANs to be mapped into a single spanning tree instance. This mapping helps reduce the number of spanning-tree instances required, leading to more efficient use of resources and faster convergence times.

Pros:

  • VLAN-Based Load Balancing: MSTP allows VLANs to be load-balanced across multiple links, improving link utilization and optimizing network performance.

  • Reduced Protocol Instances: MSTP can significantly reduce the number of spanning tree instances needed in large and complex networks.

Cons:

  • Configuration Complexity: MSTP configuration can be more intricate due to the need to map VLANs to multiple instances.



In conclusion, each of these Cisco switch protocols serves a specific purpose and offers distinct advantages. STP is simple and widely supported but has slow convergence. RSTP is backward compatible, faster, and more stable than STP. MSTP builds upon the concepts of RSTP and provides VLAN-based load balancing, making it ideal for complex networks with multiple VLANs. The selection of the best protocol depends on the specific network requirements and size. For modern networks, RSTP and MSTP are generally preferred over STP due to their improved performance and convergence times.

Conclusion

In conclusion, the Cisco switch is equipped with a plethora of features that go beyond the standard functionalities often known to network administrators. In this exploration of the "Top 5 Features You Didn't Know About Cisco Switch," we have discovered the hidden gems that can significantly enhance network management and performance.
