Multimode vs. Monomode Fiber: A Comprehensive Guide

Fiber optic cables have revolutionized data transmission, providing unparalleled speed, capacity, and reliability. At the core of these cables lie two primary types: multimode vs monomode fiber. Each possesses distinct characteristics that make it suitable for specific applications. This article delves into the intricacies of these fiber types, aiding you in making informed decisions for your network infrastructure.

Understanding the Basics

• Multimode Fiber: This type of fiber optic cable allows multiple light paths, or modes, to propagate simultaneously through its core. Characterized by a larger core diameter, typically 50 or 62.5 microns, it is relatively easy to connect and terminate. Multimode fiber is well-suited for shorter distances, commonly used within buildings or campuses.
• Monomode Fiber: In contrast, monomode fiber permits only a single light path to travel through its core. With a significantly smaller core diameter of around 8.3 microns, it offers superior bandwidth and can transmit data over much longer distances. Monomode fiber is the preferred choice for long-haul networks, including internet backbones.

Factors to Consider

Selecting the appropriate fiber type involves careful consideration of several factors:

• Distance: For short-distance transmissions within a building or campus, multimode fiber is adequate. However, for long-haul networks spanning multiple locations, monomode fiber is the superior choice due to its extended reach.
• Bandwidth: Applications demanding high data transfer rates, such as video streaming or cloud computing, benefit from the higher bandwidth offered by monomode fiber. For less demanding applications, multimode fiber may suffice.
• Cost: Multimode fiber is generally more cost-effective than monomode fiber, both in terms of the cable itself and associated equipment. However, the overall network cost is influenced by factors like distance and required data rates.
• Future-proofing: While multimode fiber has undergone improvements with advancements like OM4 and OM5, monomode fiber is better equipped to handle the increasing data rates of the future.
• Installation: The larger core diameter of multimode fiber simplifies installation and termination. Monomode fiber necessitates greater precision and specialized equipment.

Multimode Fiber Types

It's crucial to understand the different types of multi mode fiber available:

• OM1: The original multimode fiber with limited bandwidth.
• OM2: An improved version of OM1 with slightly higher bandwidth.
• OM3: Offers significantly higher bandwidth and is optimized for laser-based systems.
• OM4: Provides even higher bandwidth and supports longer distances compared to OM3.
• OM5: The latest generation of multimode fiber, designed for broadband applications and supporting multiple wavelengths.

Monomode Fiber Types

While the core principle of monomode fiber remains consistent, variations exist based on wavelength:

• Single-mode 850nm: Primarily used in short-haul applications.
• Single-mode 1310nm: Offers lower attenuation and is suitable for medium-distance links.
• Single-mode 1550nm: Provides the lowest attenuation and is ideal for long-haul networks.

Real-World Applications

• Multimode Fiber:
  • Local Area Networks (LANs) and campus networks
  • Data center interconnects
  • Video surveillance systems
  • Industrial automation
  • Short-haul optical interconnects
• Monomode Fiber:
  • Long-haul networks
  • Metropolitan Area Networks (MANs)
  • Fiber-to-the-Home (FTTH)
  • Submarine cable systems
  • High-performance computing (HPC) environments

Factors Affecting Fiber Performance

Several factors influence the performance of both multimode and monomode fiber:

• Mode Coupling: In multimode fiber, light energy can transfer between modes, affecting signal quality.
• Chromatic Dispersion: The variation of refractive index with wavelength can cause signal distortion in both types of fiber.
• Modal Dispersion: In multimode fiber, different light paths have different propagation times, leading to signal spreading.
• Attenuation: The loss of light signal as it travels through the fiber can impact performance.

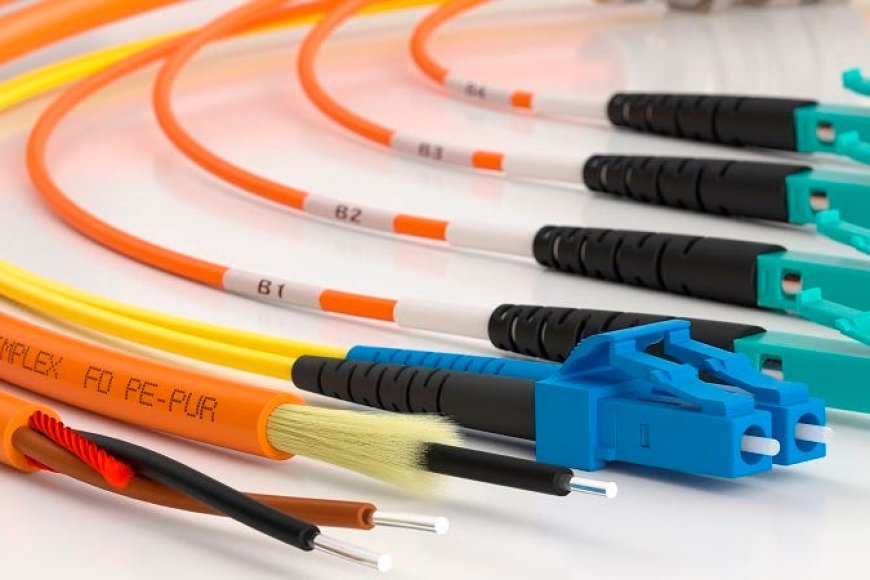

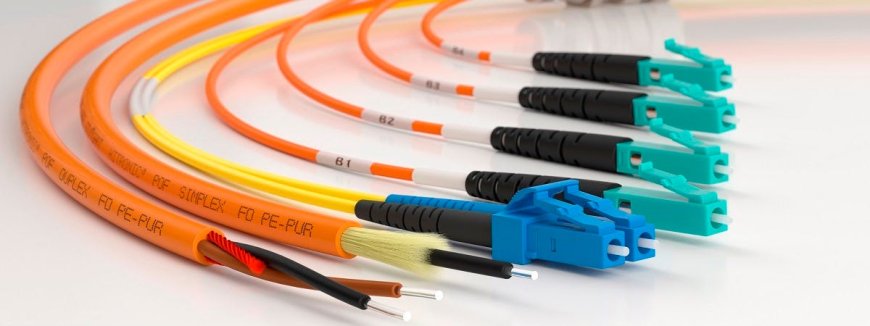

Fiber Connectors

The choice of fiber connector is equally important as the fiber type itself:

• FC (Ferrule Connector): A high-precision connector with excellent performance.
• SC (Square Connector): A popular connector known for its ease of use.
• ST (Straight Tip): A bayonet-style connector that is becoming less common.
• LC (Lucent Connector): A small, high-density connector with good performance.
• MT-RJ: A compact connector that can accommodate two fibers in a single housing.

Conclusion

Selecting the right fiber type for your network is crucial to achieving optimal performance and cost-efficiency. By understanding the key differences between multimode vs monomode fiber, considering factors like distance, bandwidth, and cost, and carefully evaluating your specific requirements, you can make informed decisions to build robust and future-proof network infrastructure.
