Enhancing Efficiency and Precision in V Groove Guide Wheels

V Groove Guide Wheels play a crucial role in guiding linear motion in various applications, such as conveyor systems, robotic arms, and CNC machines.

Aug 7, 2023 - 16:34
 0  18
Enhancing Efficiency and Precision in V Groove Guide Wheels
Enhancing Efficiency and Precision in V Groove Guide Wheels

These wheels are designed to move smoothly along V-shaped tracks, providing stability and precise alignment. To further optimize their performance, Double V Guide Wheel Bearings have emerged as a remarkable innovation in the field of motion control. In this article, we will explore the significance of Double V Guide Wheel Bearings and their contributions to enhancing efficiency and precision in V Groove Guide Wheels.

Understanding V Groove Guide Wheels

V Groove Guide Wheels are specialized components that run on V-shaped tracks, allowing linear motion in a controlled and stable manner. The groove's precise design ensures that the wheels stay on track, reducing wobbling and maintaining accurate alignment. This characteristic makes V Groove Guide Wheels ideal for applications requiring smooth and reliable movement, even under heavy loads.

Importance of Guide Wheel Bearings

Guide Wheel Bearings are critical components that facilitate the smooth rotation of V Groove Guide Wheels. These bearings minimize friction between the wheel and the track, ensuring effortless motion and reducing wear and tear on both the wheel and the track. By reducing friction, Guide Wheel Bearings contribute to lower energy consumption and prolong the life of the system, making them essential for efficient operation.

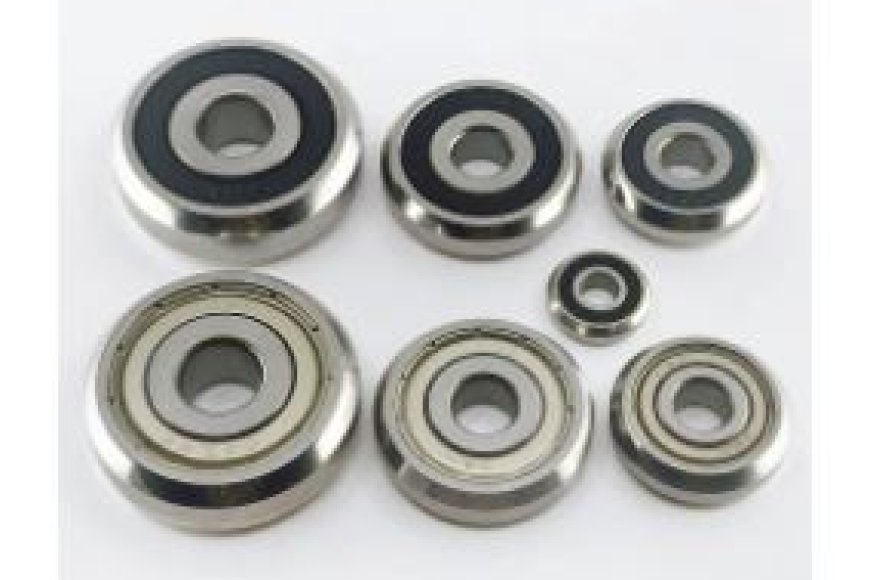

Introducing Double V Guide Wheel Bearings

Double V Guide Wheel Bearings are a revolutionary advancement in motion control technology. Unlike traditional single V groove bearings, Double V Guide Wheel Bearings feature two V-shaped surfaces, one on each side of the bearing. This design allows the guide wheel to run smoothly along two parallel tracks simultaneously. By distributing the load across two V grooves, Double V Guide Wheel Bearings significantly improve load-carrying capacity and stability, making them suitable for heavy-duty applications.

Benefits of Double V Guide Wheel Bearings

Enhanced Load Capacity: Double V Guide Wheel Bearings can withstand higher loads than their single V groove counterparts. The distribution of load across two V grooves reduces stress on individual grooves, enhancing the bearing's overall load-carrying capacity. This capability opens up new possibilities for applications requiring heavy loads or continuous operation.

Improved Stability: The two V-shaped surfaces in Double V Guide Wheel Bearings provide improved stability and alignment. This enhanced stability reduces the chances of derailment or misalignment, ensuring smooth motion even in challenging environments or uneven tracks.

Increased Precision: Precision is vital in many applications, such as CNC machining and robotics. Double V Guide Wheel Bearings offer exceptional precision due to their balanced design and smooth motion along dual V grooves. This characteristic makes them highly suitable for tasks demanding accurate positioning and repeatability.



Reduced Friction and Wear: With Double V Guide Wheel Bearings, the load is distributed across two surfaces, reducing the pressure on each groove. As a result, friction and wear on both the bearings and the V grooves are minimized, leading to longer service life and reduced maintenance requirements.

Applications of Double V Guide Wheel Bearings

The versatility and advantages of Double V Guide Wheel Bearings make them suitable for a wide range of applications, including:

Conveyor Systems: In material handling and manufacturing industries, conveyor systems often carry heavy loads over long distances. Double V Guide Wheel Bearings enhance the performance and reliability of conveyor systems by providing smooth and stable motion, even with substantial loads.

CNC Machining: Precision is paramount in CNC machining to achieve accurate cuts and shapes. Double V Guide Wheel Bearings ensure precise movement of cutting tools, improving the machining quality and efficiency.

Robotics: Robotic arms require precise and repeatable movements. Double V Guide Wheel Bearings enable smooth and stable motion, allowing robots to perform intricate tasks with accuracy and reliability.

Conclusion

Double V Guide Wheel Bearings have revolutionized motion control technology by offering enhanced load capacity, stability, precision, and reduced friction. Their ability to run smoothly along two parallel V grooves makes them indispensable for heavy-duty applications that demand efficient and precise linear motion. Whether in conveyor systems, CNC machines, or robotics, Double V Guide Wheel Bearings contribute to increased efficiency and productivity, paving the way for more advanced and sophisticated motion control applications in various industries.
